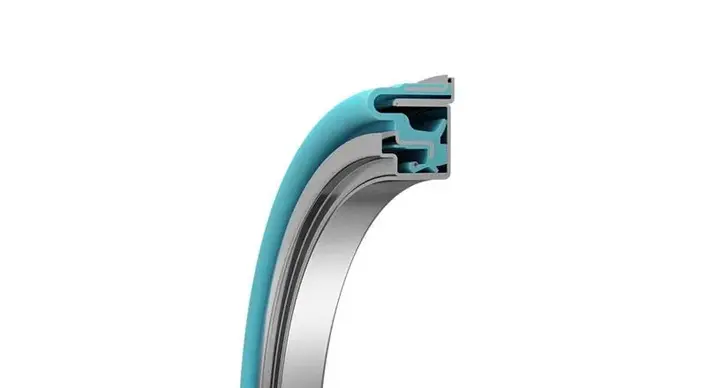

URDV is an elastomeric rotary shaft seal (cassette type), suitable for sealing with high axial play. Available in NBR, HNBR, and FKM (75 Shore A hardness), for low and high temperature. Unique design with a dedicated membrane, capable of managing axial play between shaft and bore-housing. This design suitable also for low lubrification level conditions, using a special grade of grease.
Ø - Range | Pressure Range | Temp. range | Velocity |
|---|---|---|---|
40 - 200 mm │ - | up to 0.15 MPa │ up to 217 psi | -30°C +150°C │-22°F +302°F | up to 5 m/s │ up to 16 ft/s |
