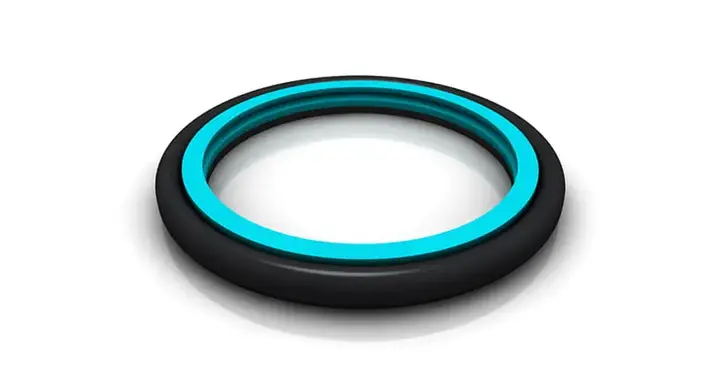

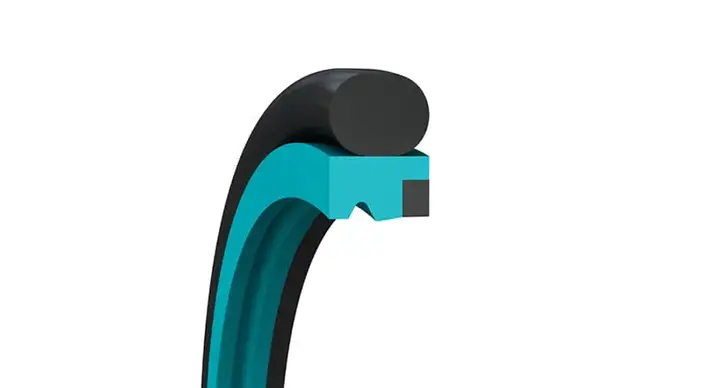

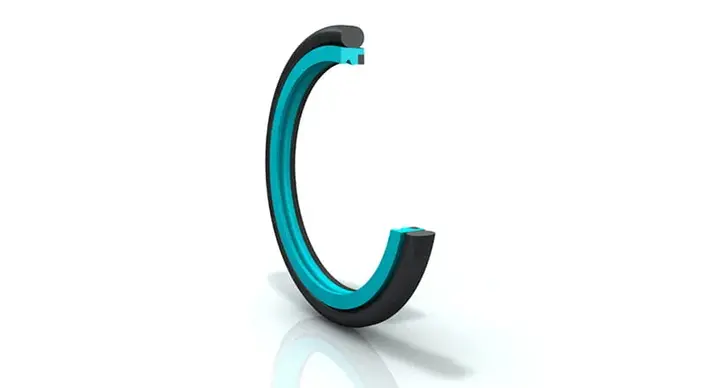

Single-acting O-Ring energized rod seal with integrated back-up ring for higher pressure or bigger gaps for dynamic applications. High sealing efficiency, low friction with no stick-slip, minimal break out force and high wear resistance. Installation in the same grooves as Turcon® Stepseal® 2K and grooves according to ISO 7425-2.
Ø - Range | Pressure Range | Temp. range | Velocity |
|---|---|---|---|
30 – 2600 mm │ 1.18 - 102 in | 100 MPa │ 14500 psi | -45°C +200°C │ -49°F +392°F | 15 m/s │ 16 ft/s |
