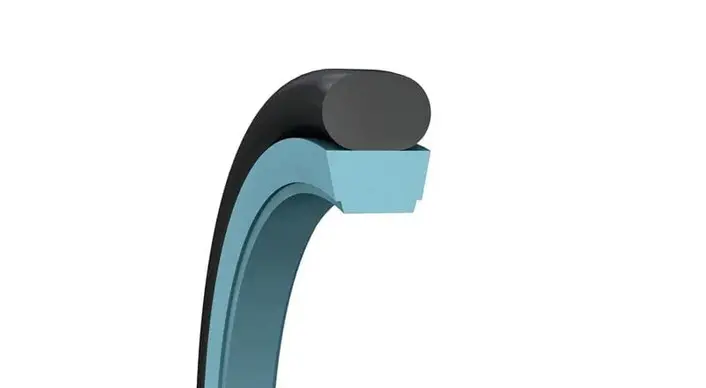

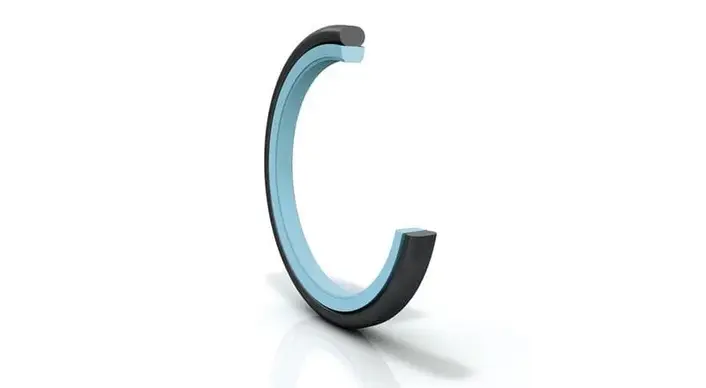

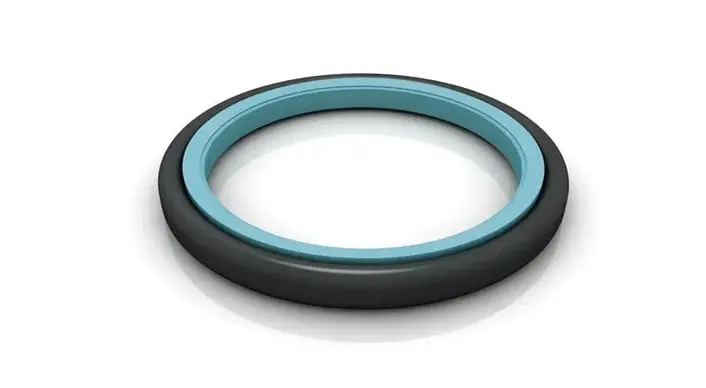

A further development of the Turcon® Glyd Ring® T provides improved leakage control and better resistance to extrusion. It is a double-acting O‑Ring energized rod seal for dynamic applications that can be installed in grooves to ISO 7425. It offers low friction with no stick-slip, minimal breakout force and high wear resistance.
Ø - Range | Pressure Range | Temp. range | Velocity |
|---|---|---|---|
3 - 2600 mm │ 0.118 - 102 in | 60 MPa │ 8700 psi | -45°C +200°C │ -49°F +392°F | 15 m/s │ 50 ft/s |
Catalogue
