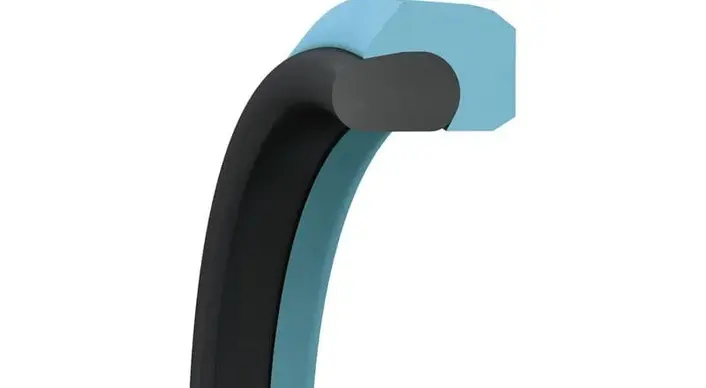

The Turcon® VL Seal® is a single-acting L-shaped Turcon® seal with an elastic energizer for dynamic applications. Its design provides low friction, no stick-slip effect, high wear resistance. It features the Turcon® Stepseal® back pumping effect and is also available in Zurcon®. The seal can be installed in a standard O-Ring groove.
Ø - Range1 | Pressure Range1 | Temp range1 | Velocity1 |
|---|---|---|---|
10 - 2700 mm │ 0.400 - 105 in | 60 MPa │ 8700 psi | -45°C +200°C │ -49°F +392°F | 15 m/s │ 50 ft/s |
Catalogue
