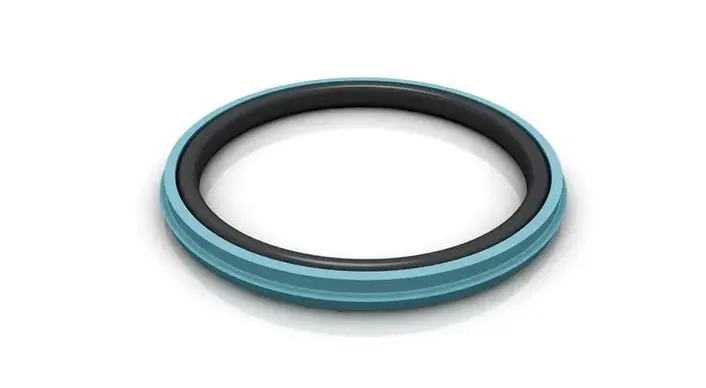

A single-acting O-Ring energized piston seal for dynamic applications installed in closed grooves, including grooves to ISO 7425. Turcon® Stepseal® 2K offers high sealing efficiency, low friction with no stick‑slip, minimal breakout force and high wear resistance. Optimum sealing characteristics are achieved by installing in a tandem Turcon® Stepseal® or Rimseal arrangement together with a doubleacting scraper. Available in Turcon® or Zurcon® materials.
Ø - Range1 | Pressure Range1 | Temp range1 | Velocity1 |
|---|---|---|---|
8 - 2700 mm │ 0.315 - 105 in | 60 MPa │ 8700 psi | -45°C +200°C │ -49°F +392°F | 15 m/s │ 50 ft/s |
Catalogue
